4701 Series Square End Plates – Internal & Standard Options with Lever Variants

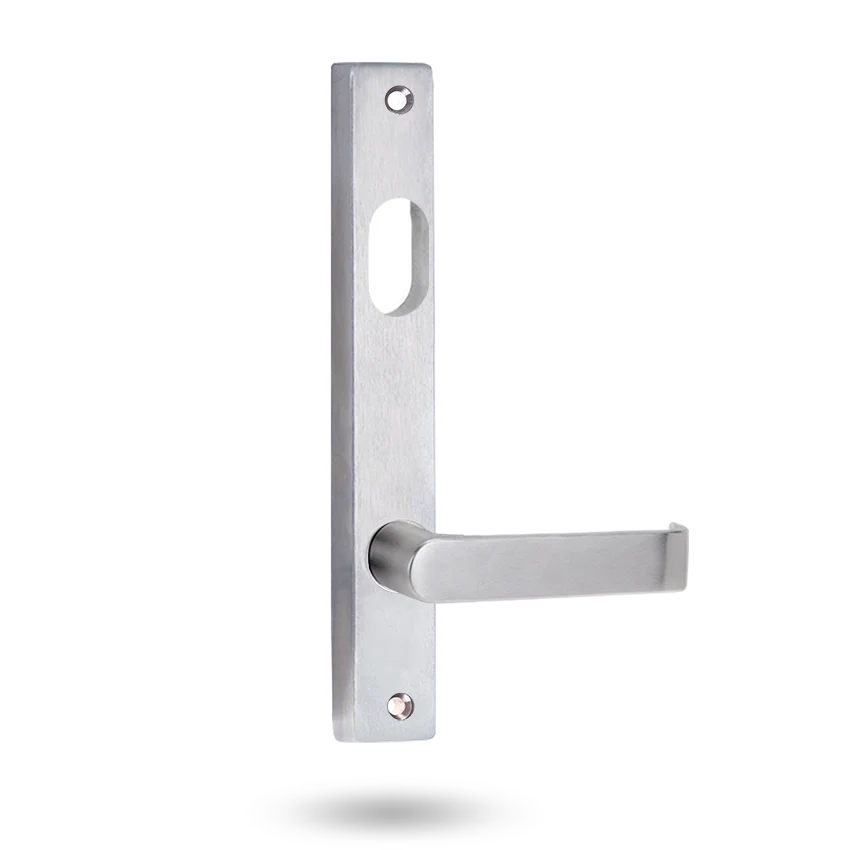

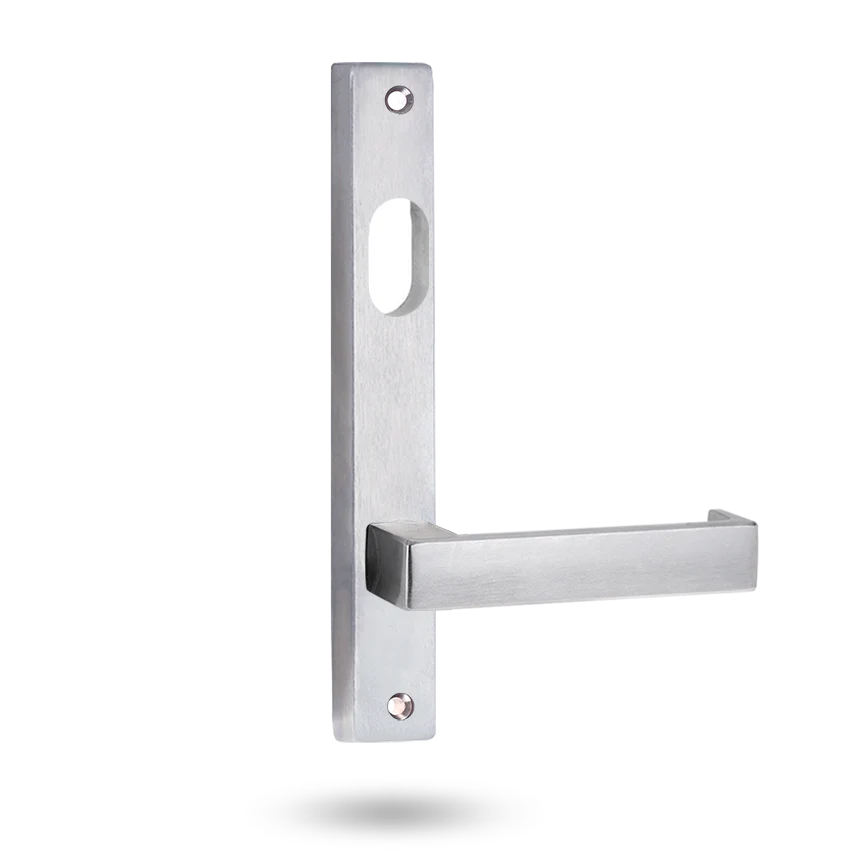

4701 Series Square End Plates

Part of Lockwood’s architecturally designed brass plate range, this square-end plate with lever options provides a sleek, functional solution for commercial, institutional, and high-traffic environments. Compatible with Lockwood mortice locks.

Features

• Lever Design: Lever options including 102, 70, 74, 97, 106, 112, 155, 166 for ergonomic comfort

• Plate Style: Square-end rectangular plate with concealed fixings

• Cylinder Hole: Integrated for mortice locks and deadbolts (cylinder not included)

• Durability: Rated D8 (500,000 cycles) under AS4145.2:2008

• Accessibility: Compliant with AS1428.1-2009 for disabled access

• Fire Rating: Certified for use on fire doors up to 4 hours with compatible mortice locks

• Finish: Chrome Plate (CP) – corrosion-resistant

• Installation: Non-handed; symmetrical levers reversible; supplied with fixing screws for 32–45 mm doors

Variants

• Internal Square End Plate – Cylinder Hole – Lever 102 — 4701/102CP

• Square End Plate – Cylinder Hole – Lever 70 — 4701/70CP

• Square End Plate – Cylinder Hole – Lever 74 — 4701/74CP

• Square End Plate – Cylinder Hole – Lever 97 — 4701/97CP

• Internal Square End Plate – Cylinder Hole – Lever 106 — 4701/106PC

• Square End Plate – Cylinder Hole – Lever 70 — 4701/70PC

• Square End Plate – Cylinder Hole – Lever 97 — 4701/97PC

• Internal Square End Plate – Cylinder Hole – Lever 106 — 4701/106SC

• Internal Square End Plate – Cylinder Hole – Lever 112 — 4701/112SC

• Internal Square End Plate – Cylinder Hole – Lever 155 — 4701/155SC

• Internal Square End Plate – Cylinder Hole – Lever 166 — 4701/166SC

• Square End Plate – Cylinder Hole – Lever 111 — 4701/111SC

• Square End Plate – Cylinder Hole – Lever 41 – LH — 4701/41LSC

• Square End Plate – Cylinder Hole – Lever 41 – RH — 4701/41RSC

• Square End Plate – Cylinder Hole – Lever 59 — 4701/59SC

• Square End Plate – Cylinder Hole – Lever 70 — 4701/70SC

• Square End Plate – Cylinder Hole – Lever 76 — 4701/76SC

• Square End Plate – Cylinder Hole – Lever 77 — 4701/77SC

• Square End Plate – Cylinder Hole – Lever 90 — 4701/90SC

• Square End Plate – Cylinder Hole – Lever 97 — 4701/97SC

• Internal Square End Plate – Cylinder Hole – Lever 118 — 4701/118AU

• Square End Plate – Cylinder Hole – Lever 59 — 4701/59AU

• Square End Plate – Cylinder Hole – Lever 70 — 4701/70SB
