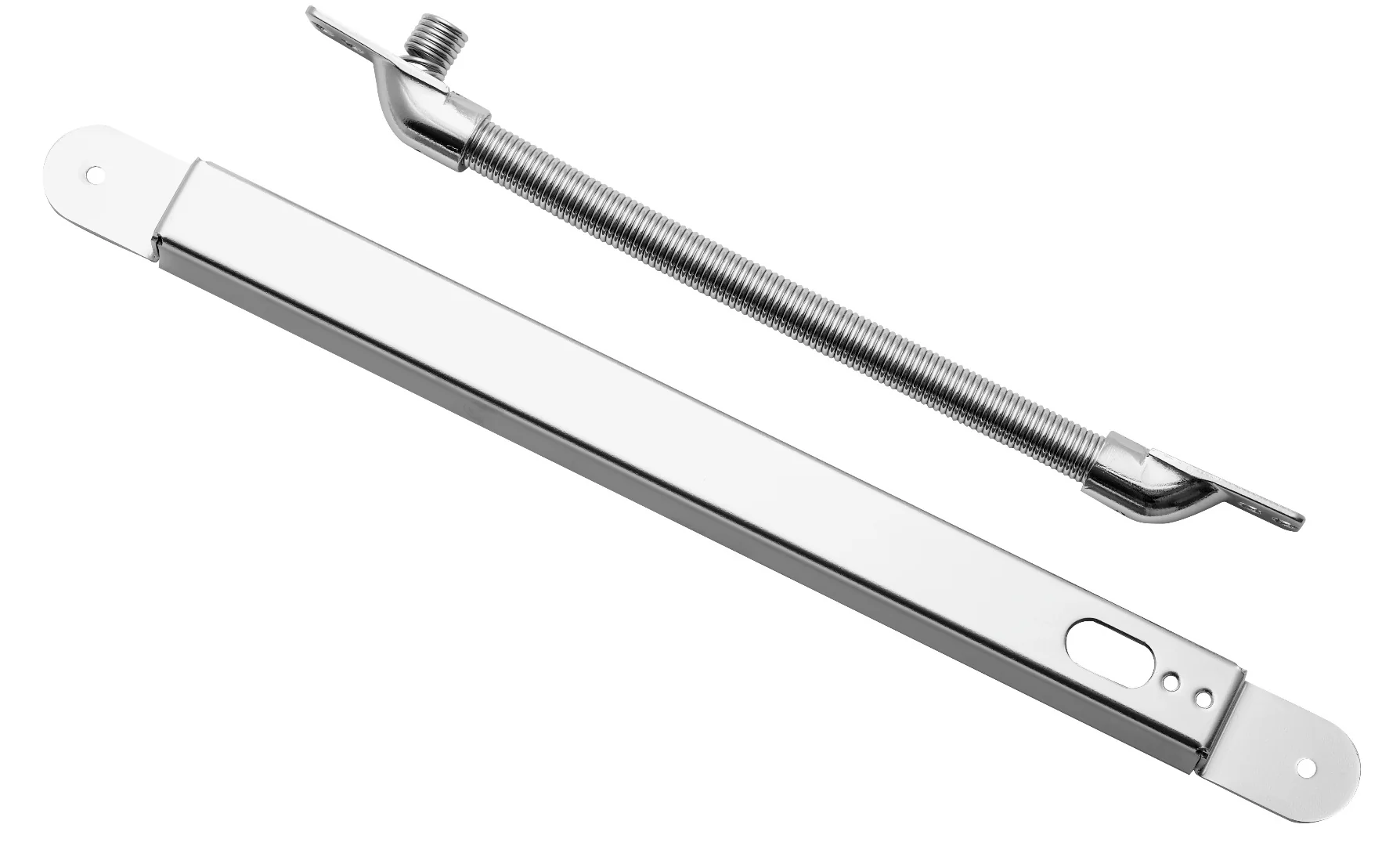

497mm Cable Transfer Device – Lead Cover

The LC8810 and LC8811 Power Transfer Lead Covers are designed to ensure unbroken transfer of wires between door and frame in electric locking situations.

Features

• Provides unbroken connection from controller to lock, for cable up to 8mm in diameter
• Vandal-resistant chrome plated steel flexible.
• Completely concealed when the door is closed.

Applications

LC8810
The LC8810 is a shorter unit suitable for hinged doors which open to 90° (maximum of 120°).

LC8811
The LC8811 is designed for use on doors which open more than 120°, or have a gap from pin hinge to door frame of more than 20 mm. NB. Not suitable for centrally pivoted doors.

Standards and Compliance
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005
(Part 1: Fire resistant door sets)
