Low Profile Threshold Plates – Multiple Widths and Lengths in Silver

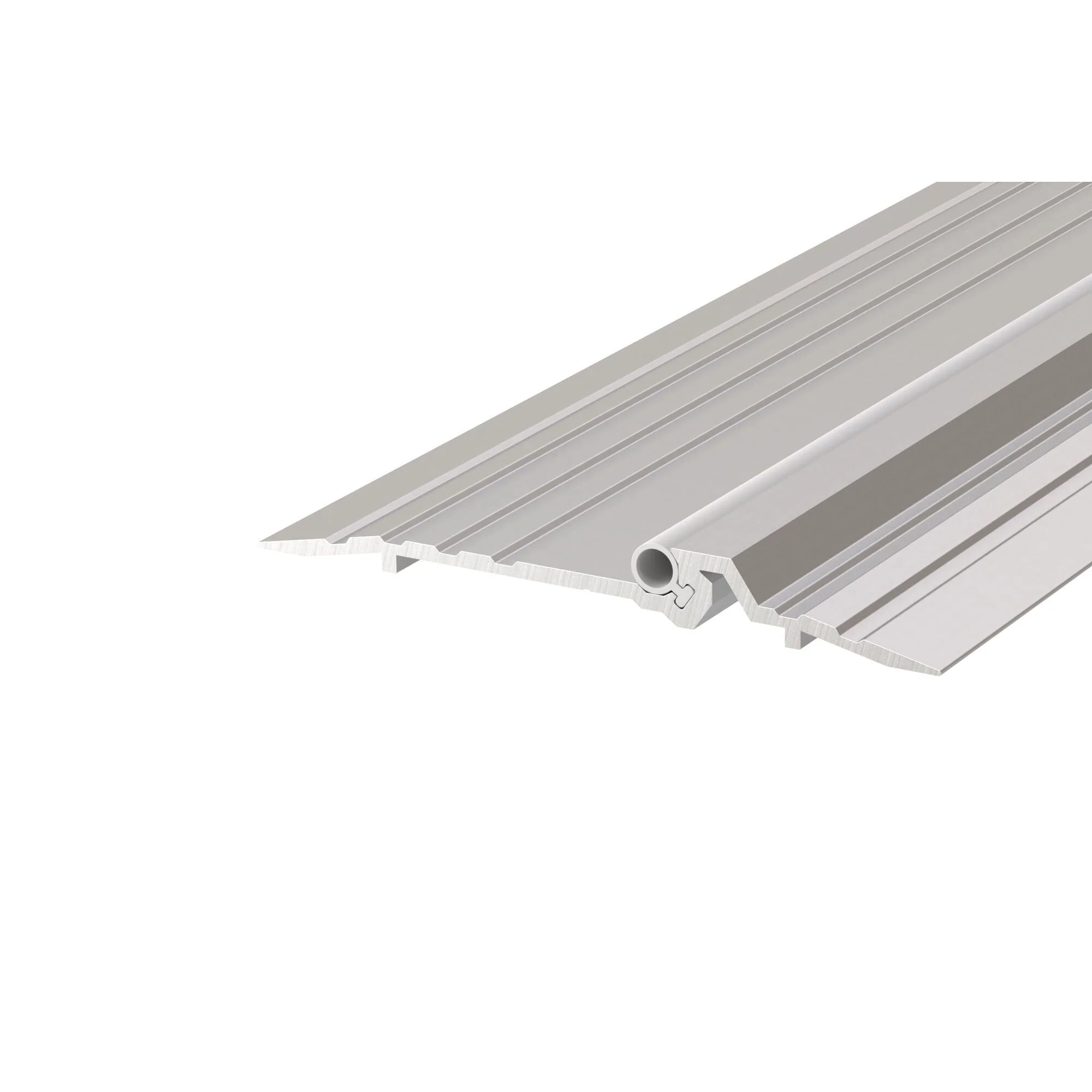

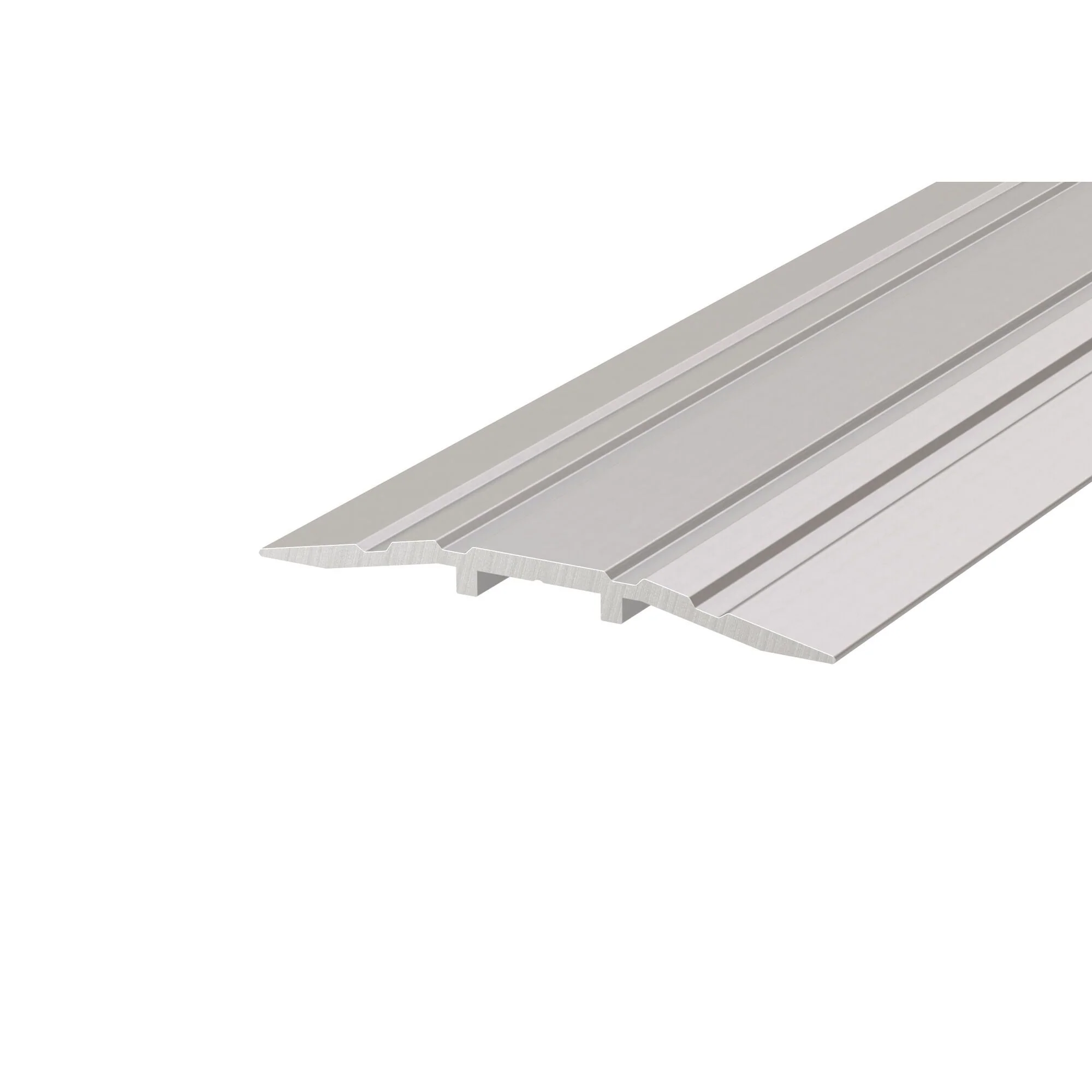

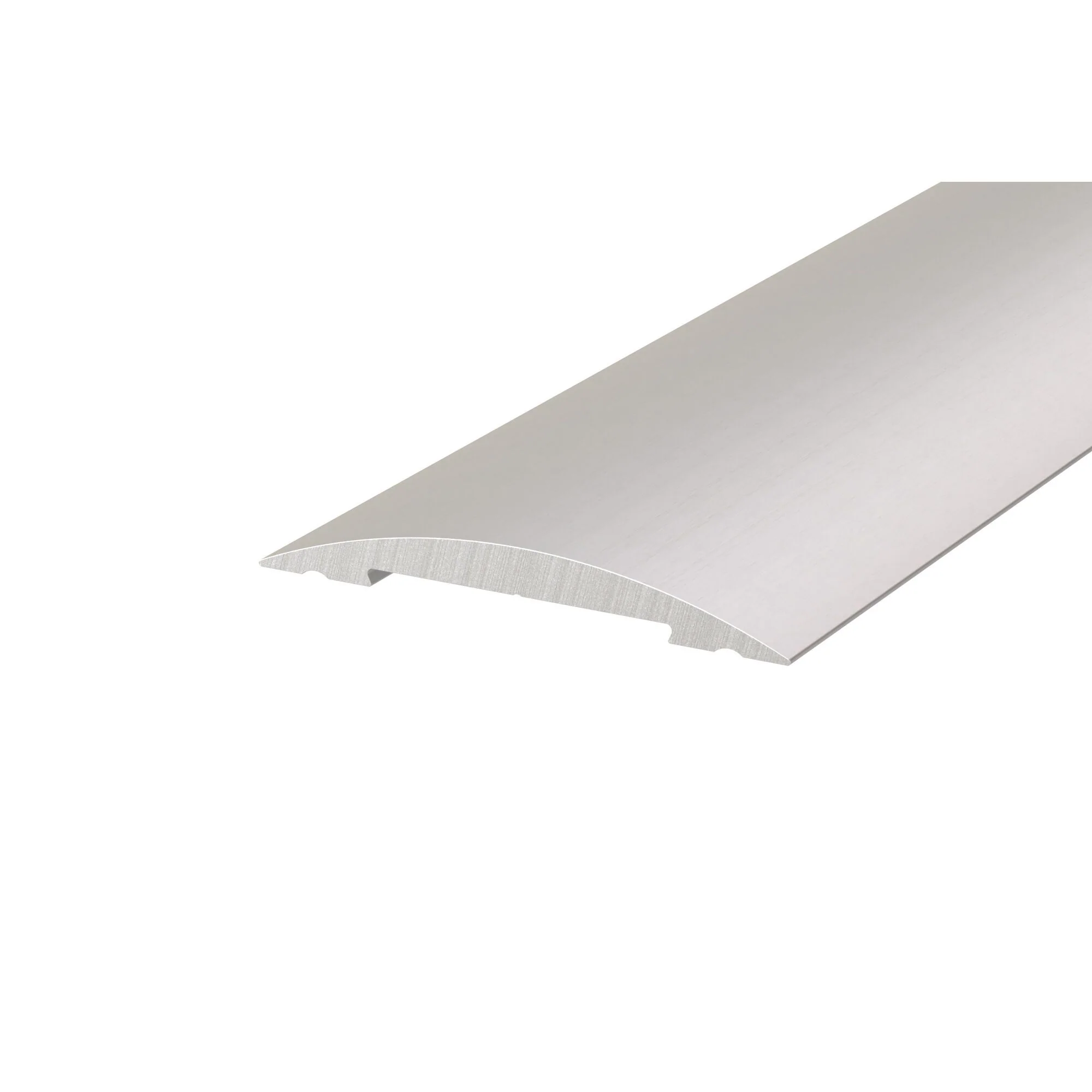

Low Profile Threshold Plate

The LAS4000 and LAS4010–LAS4013 low profile threshold plate range provides an effective, discreet solution for sealing door thresholds while maintaining smooth accessibility. Designed for use with door bottom seals, these plates help control weather, smoke and sound transfer, making them suitable for residential, commercial and compliant building applications across Australia.

Features

• Low profile design at approximately 6 mm height for unobtrusive installation

• Designed to work in conjunction with door bottom (threshold) seals

• Helps prevent rain, draught and smoke penetration

• Smooth transition surface suitable for wheeled traffic and accessibility compliance

• Manufactured from durable aluminium for long-term performance

• Silver anodised finish to suit a wide range of door and floor finishes

• Can be mechanically fixed with supplied screw pack or adhered using construction adhesive

• Suitable for new builds and retrofit installations

• Approved for use on proprietary fire door assemblies up to 4-hour fire ratings (AS1905.1)

• Acoustically tested as part of a system to ISO10140-2 and AS/NZS717.1

• Approved for Bushfire Attack Levels up to Flame Zone (FZ) classification

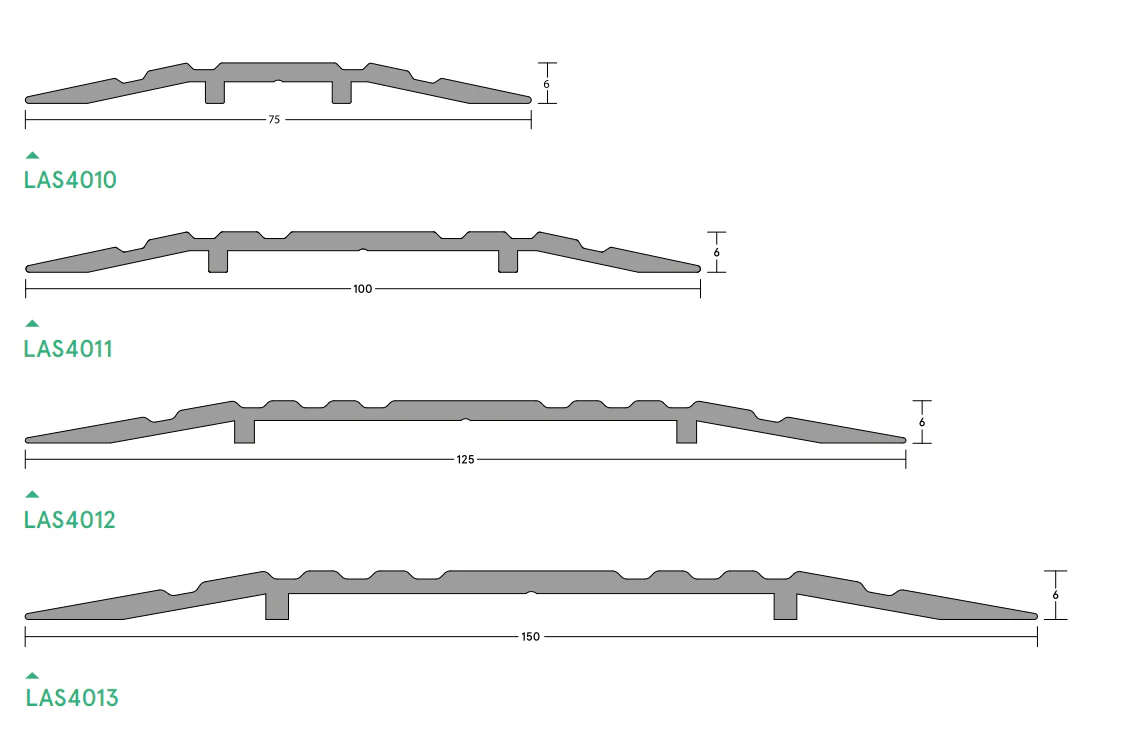

Available Variants

• 40W – 1000 – LAS4002/1000/S

• 40W – 1500 – LAS4002/1500/S

• 40W – 2100 – LAS4002/2100/S

• 75W – 1000 – LAS4010/1000/S

• 75W – 2100 – LAS4010/2100/S

• 75W – 3000 – LAS4010/3000/S

• 100W – 1000 – LAS4011/1000/S

• 100W – 2100 – LAS4011/2100/S

• 100W – 3000 – LAS4011/3000/S

• 125W – 1000 – LAS4012/1000/S

• 125W – 2100 – LAS4012/2100/S

• 125W – 3000 – LAS4012/3000/S

• 150W – 1000 – LAS4013/1000/S

• 150W – 2100 – LAS4013/2100/S

• 150W – 3000 – LAS4013/3000/S

• O/O 125W – 1000 – LAS4014/1000/S

• O/O 125W – 2100 – LAS4014/2100/S
