LW9 5 Pin Cylinder Assemblies – Double, External & Internal Options

Lockwood LW9 5 Pin Cylinder Assembly Range

The Lockwood LW9 5 Pin Cylinder Assembly range is designed to integrate seamlessly with the Lockwood LW9 Patio Sliding Door Lock system, providing flexible security configuration options for modern sliding door applications. Ideal for residential and light commercial use, these cylinder assemblies support secure operation while maintaining the clean, minimalist styling of the LW9 range.

Features

• Specifically designed for compatibility with the Lockwood LW9 Patio Sliding Door Lock

• 5 pin cylinder configuration for dependable everyday security

• Supports Safety Mode and Secure Mode locking when used with compatible LW9 locksets

• Available in internal, external and double cylinder formats to suit different door requirements

• Enables consistent keying arrangements across multiple doors

• Precision-engineered for smooth, reliable operation

• Suitable for aluminium and timber sliding door installations

• Ideal for new installations, upgrades and replacement applications

• Maintains cohesive appearance with LW9 lock furniture and handles

Available Variants

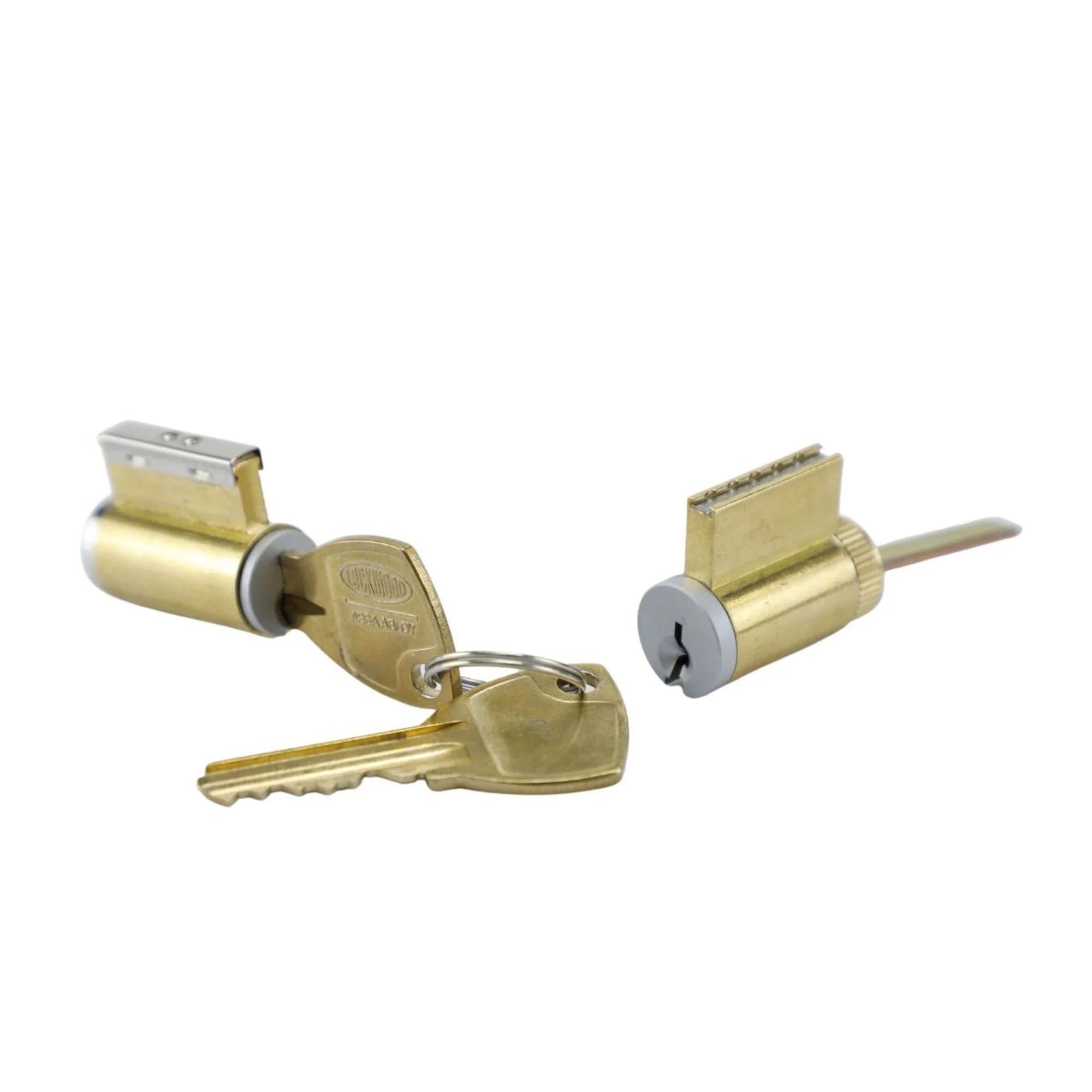

• Double Cylinder Assembly – Key 01 – LW9X4X-01

• Double Cylinder Assembly – Key 02 – LW9X4X-02

• Double Cylinder Assembly – Key 03 – LW9X4X-03

• Double Cylinder Assembly – Key 04 – LW9X4X-04

• Double Cylinder Assembly – Key 05 – LW9X4X-05

• Double Cylinder Assembly – Key 06 – LW9X4X-06

• Double Cylinder Assembly – Key 07 – LW9X4X-07

• Double Cylinder Assembly – Key 08 – LW9X4X-08

• Double Cylinder Assembly – Key 09 – LW9X4X-09

• Double Cylinder Assembly – Key 10 – LW9X4X-10

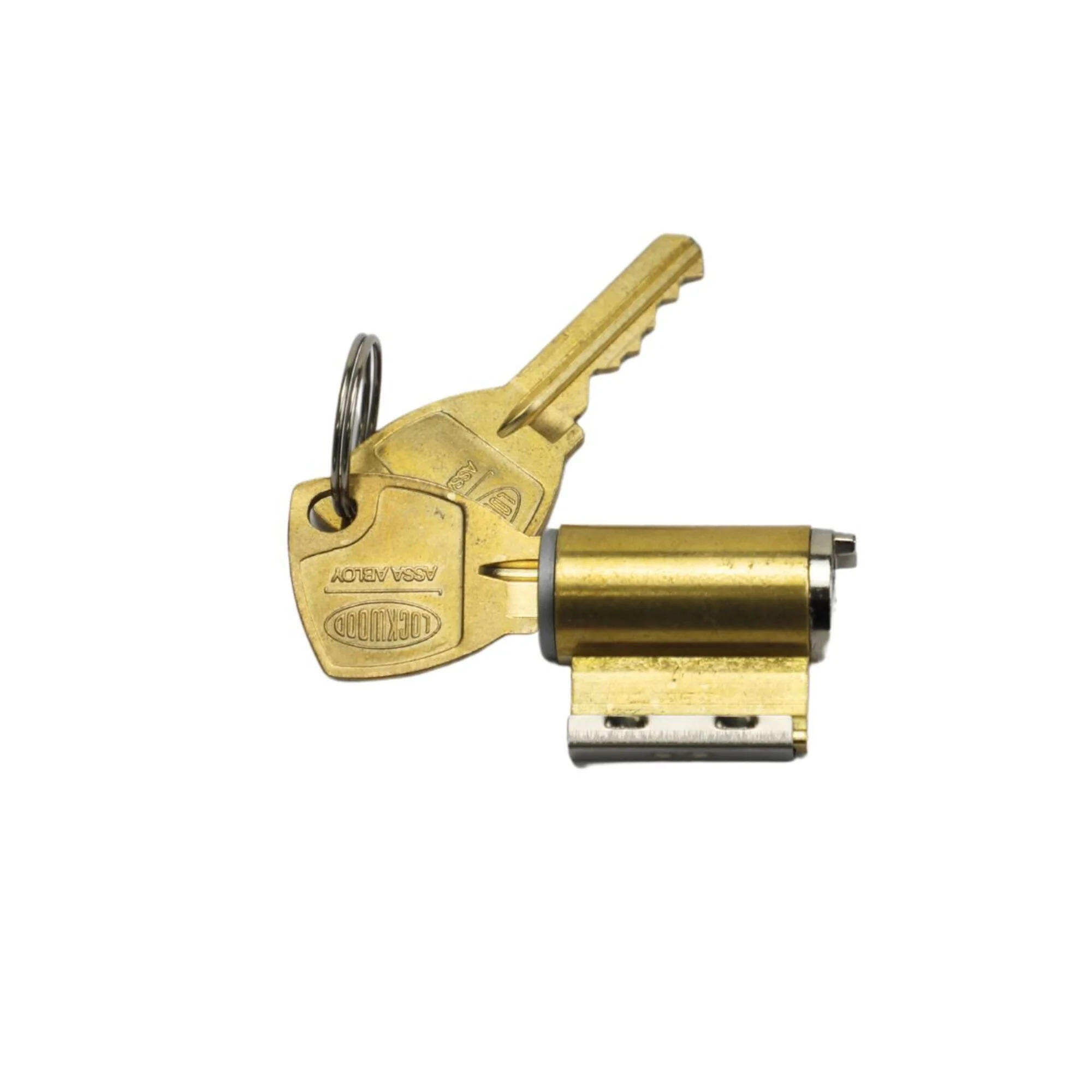

• External Cylinder Assembly – Key 01 – LW9X6X-01

• External Cylinder Assembly – Key 02 – LW9X6X-02

• External Cylinder Assembly – Key 03 – LW9X6X-03

• External Cylinder Assembly – Key 04 – LW9X6X-04

• External Cylinder Assembly – Key 05 – LW9X6X-05

• External Cylinder Assembly – Key 06 – LW9X6X-06

• External Cylinder Assembly – Key 07 – LW9X6X-07

• External Cylinder Assembly – Key 08 – LW9X6X-08

• External Cylinder Assembly – Key 09 – LW9X6X-09

• External Cylinder Assembly – Key 10 – LW9X6X-10

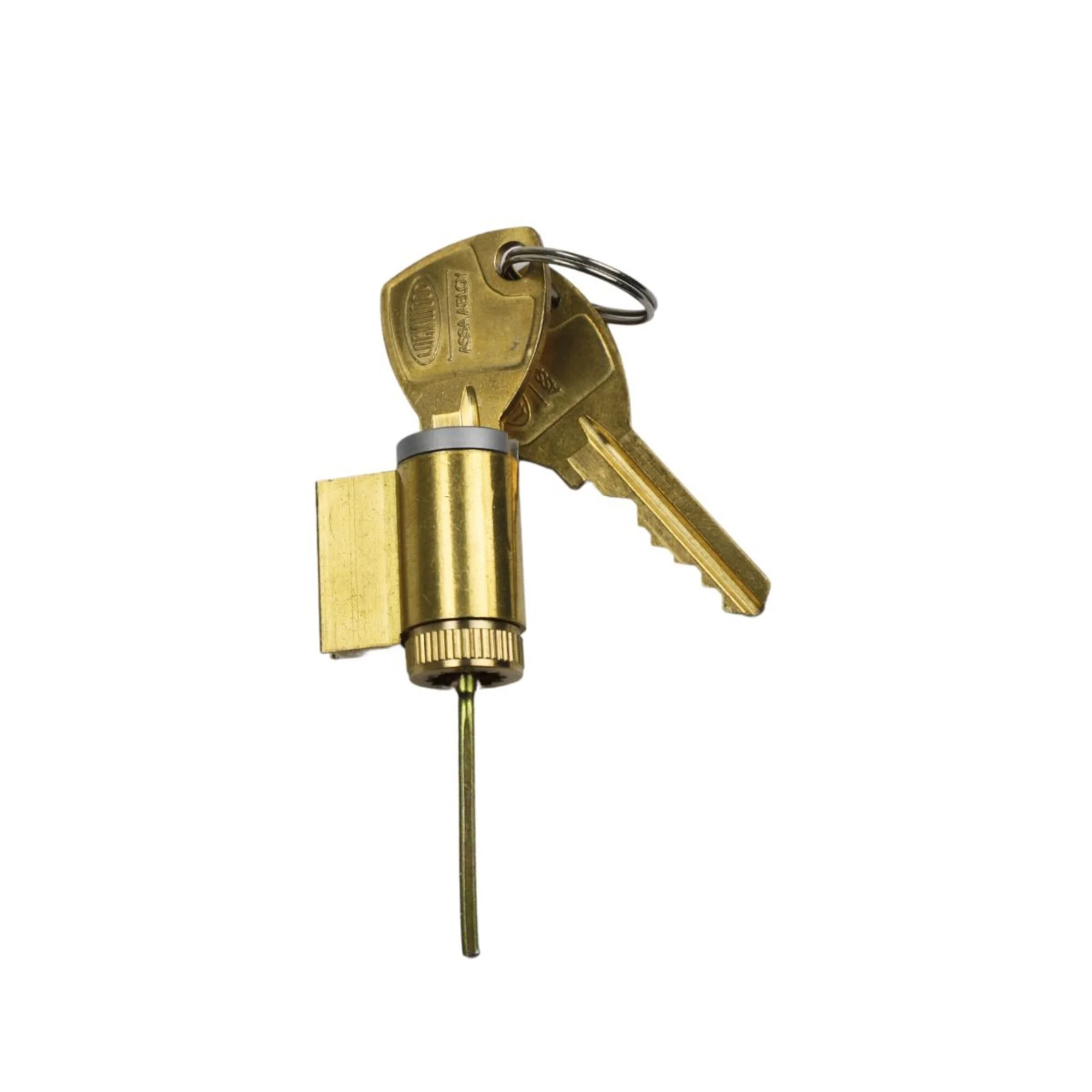

• Internal Cylinder Assembly – Key 01 – LW9X3X-01

• Internal Cylinder Assembly – Key 02 – LW9X3X-02

• Internal Cylinder Assembly – Key 03 – LW9X3X-03

• Internal Cylinder Assembly – Key 04 – LW9X3X-04

• Internal Cylinder Assembly – Key 05 – LW9X3X-05

• Internal Cylinder Assembly – Key 06 – LW9X3X-06

• Internal Cylinder Assembly – Key 07 – LW9X3X-07

• Internal Cylinder Assembly – Key 08 – LW9X3X-08

• Internal Cylinder Assembly – Key 09 – LW9X3X-09

• Internal Cylinder Assembly – Key 10 – LW9X3X-1
