NEXUS HCA Window Stay Pair – Friction Options

Nexus High Capacity Aluminium Window Stay

The Nexus Window Stay range is a high-performance aluminium stay system engineered for modern residential windows requiring superior load capacity and long-term durability. Designed to replace traditional A stay ranges in the Australian market, Nexus delivers outstanding strength, smooth operation, and reliable weather sealing for larger projected top-hung windows.

Features

• Supports window weights of up to 60 kg for heavy-duty residential applications

• Suitable for windows up to 2 metres in height

• Patent-pending integrated friction joint for controlled and consistent operation

• Geometry optimised to suit a wide range of window sizes

• Unique pull-in feature assists with tight closure and effective weather sealing

• Available high friction options clearly identified for easy on-site selection

• Designed for projected top-hung window configurations

• Provides compression for improved weather seal performance

• Manufactured from extruded aluminium with no sliding channels for added strength

• Tested to 36,000 cycles for long-term endurance

• Complies with NZS 4211 requirements

Available Variants

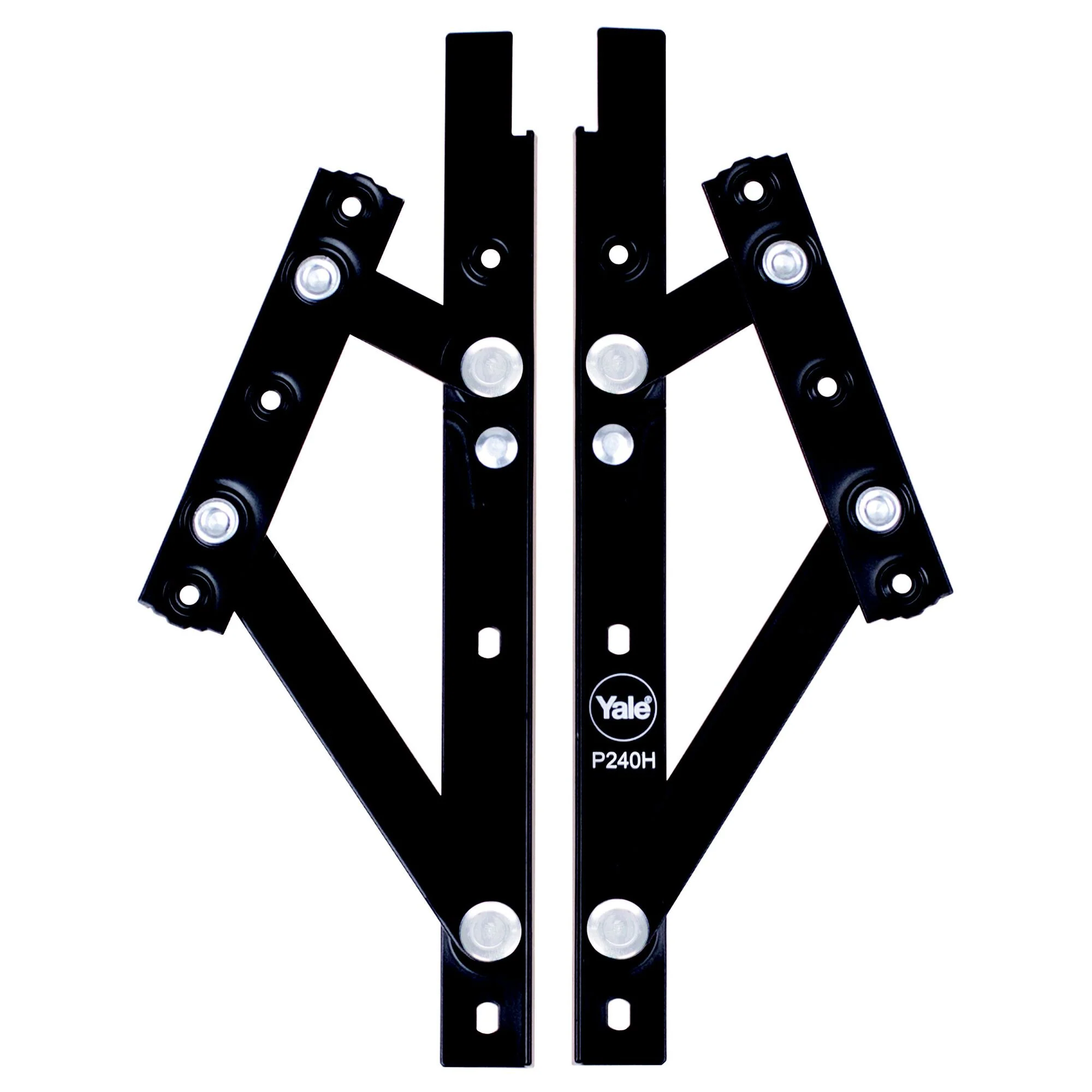

• 240 – High Friction – P240H

• 240 – Non Friction – P240N

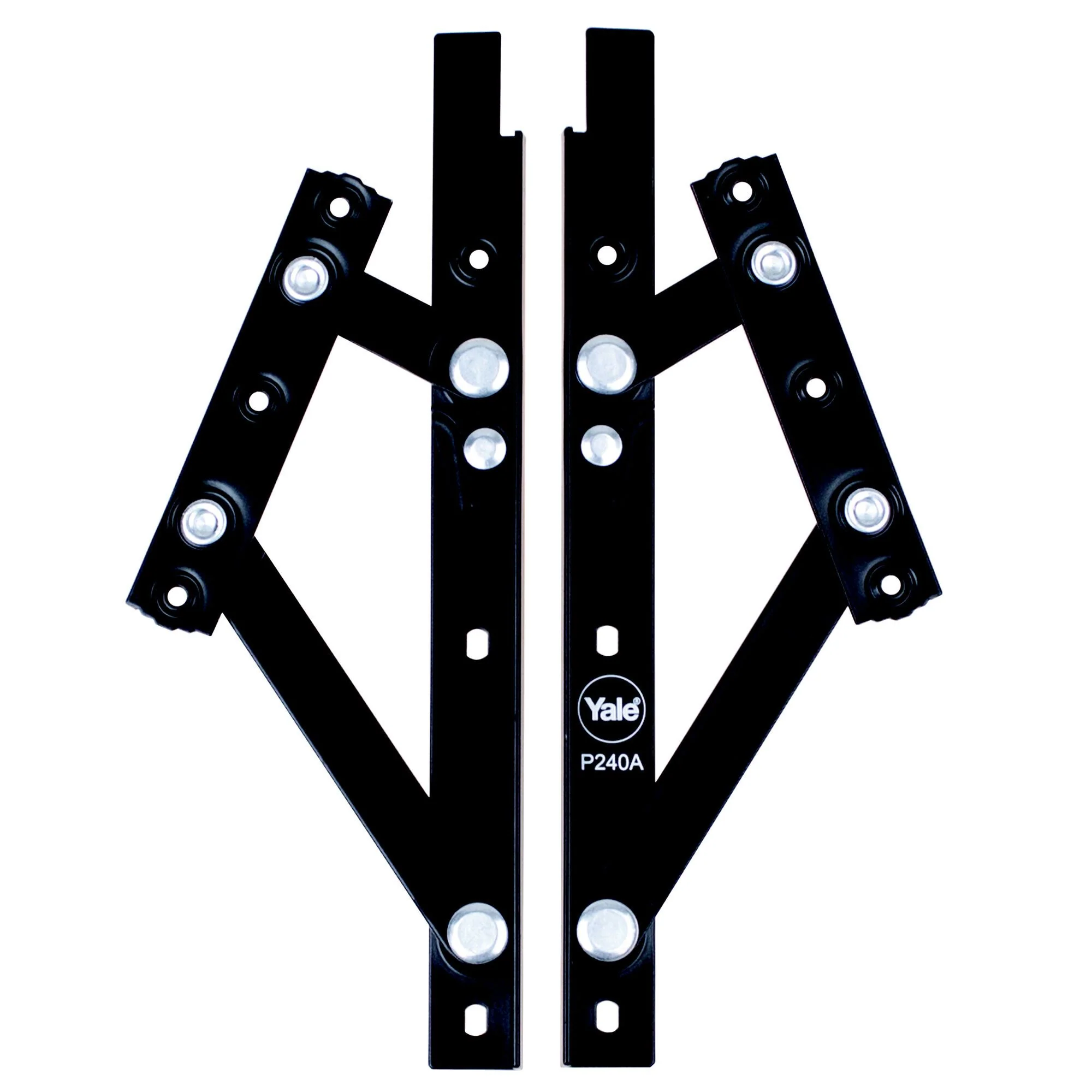

• 240 – Standard Friction – P240A

• 340 – High Friction – P340H

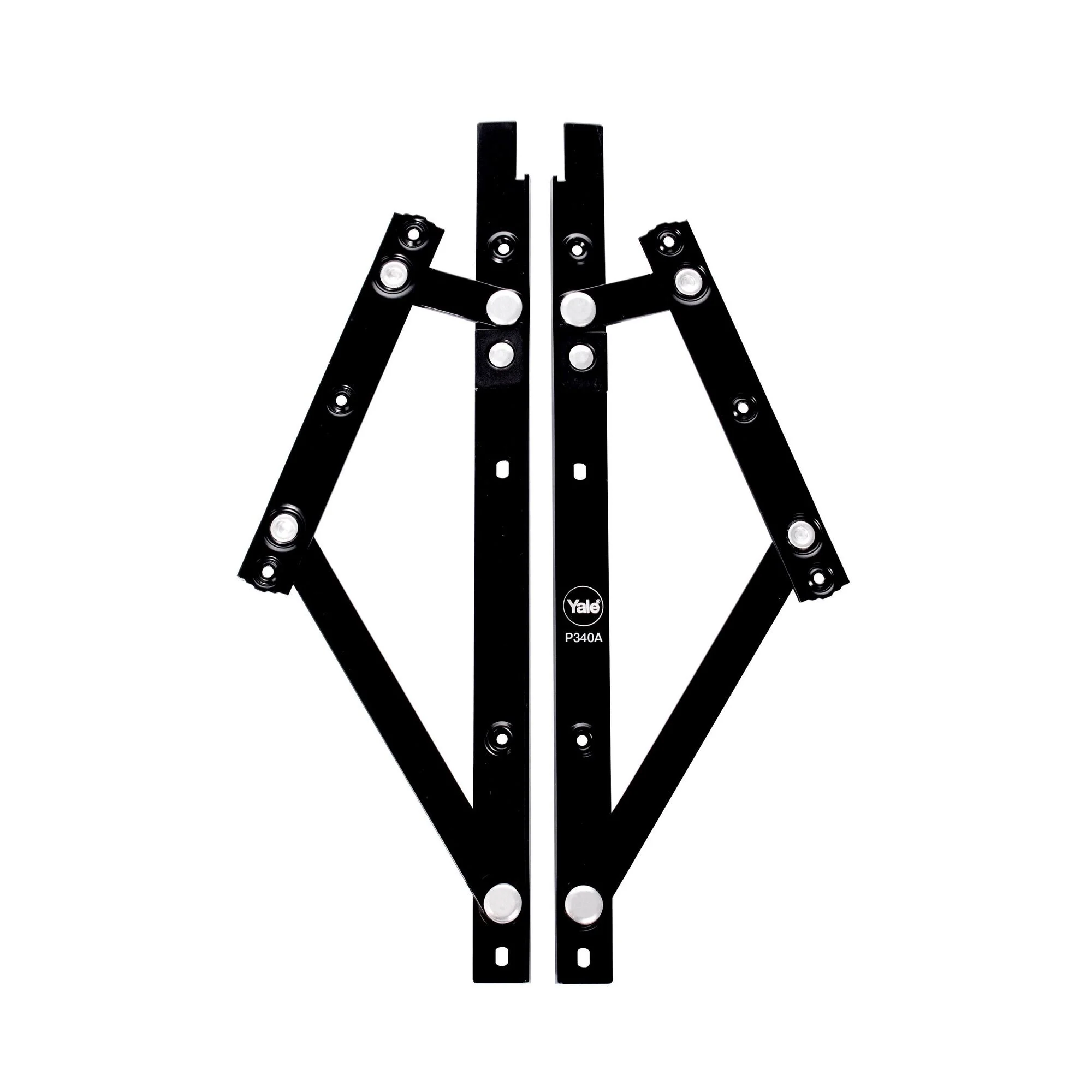

• 340 – Standard Friction – P340A

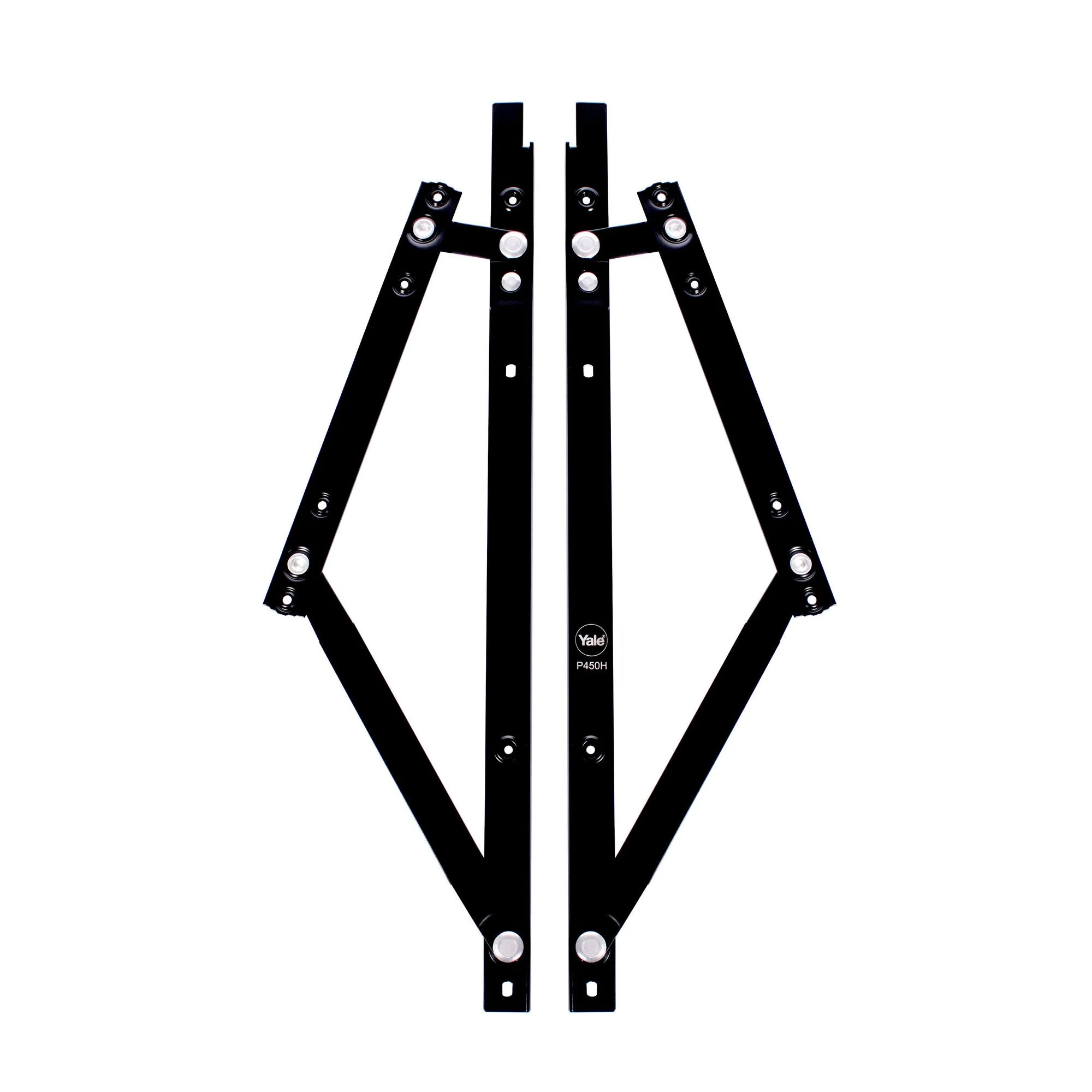

• 450 – High Friction – P450H

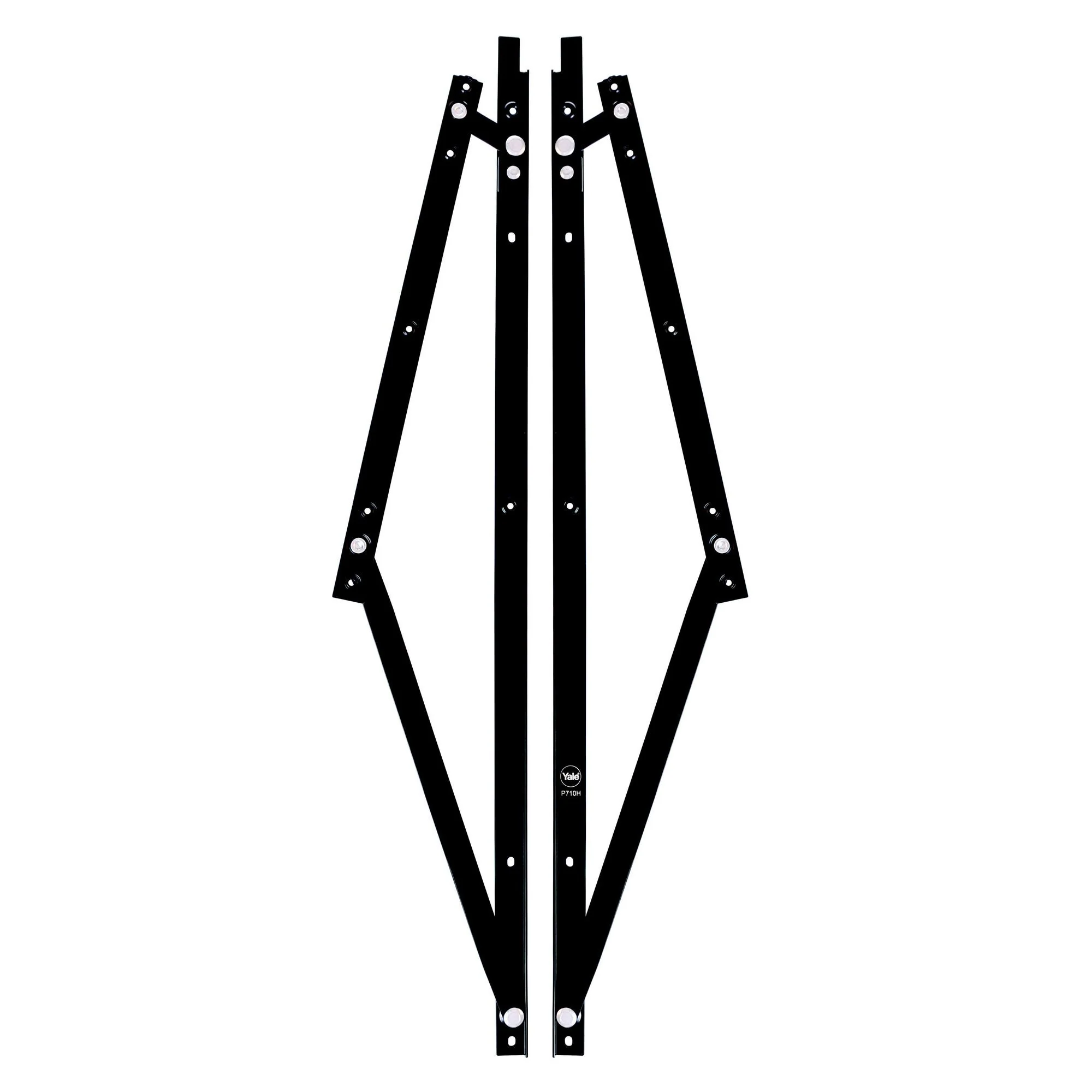

• 710 – High Friction – P710H
