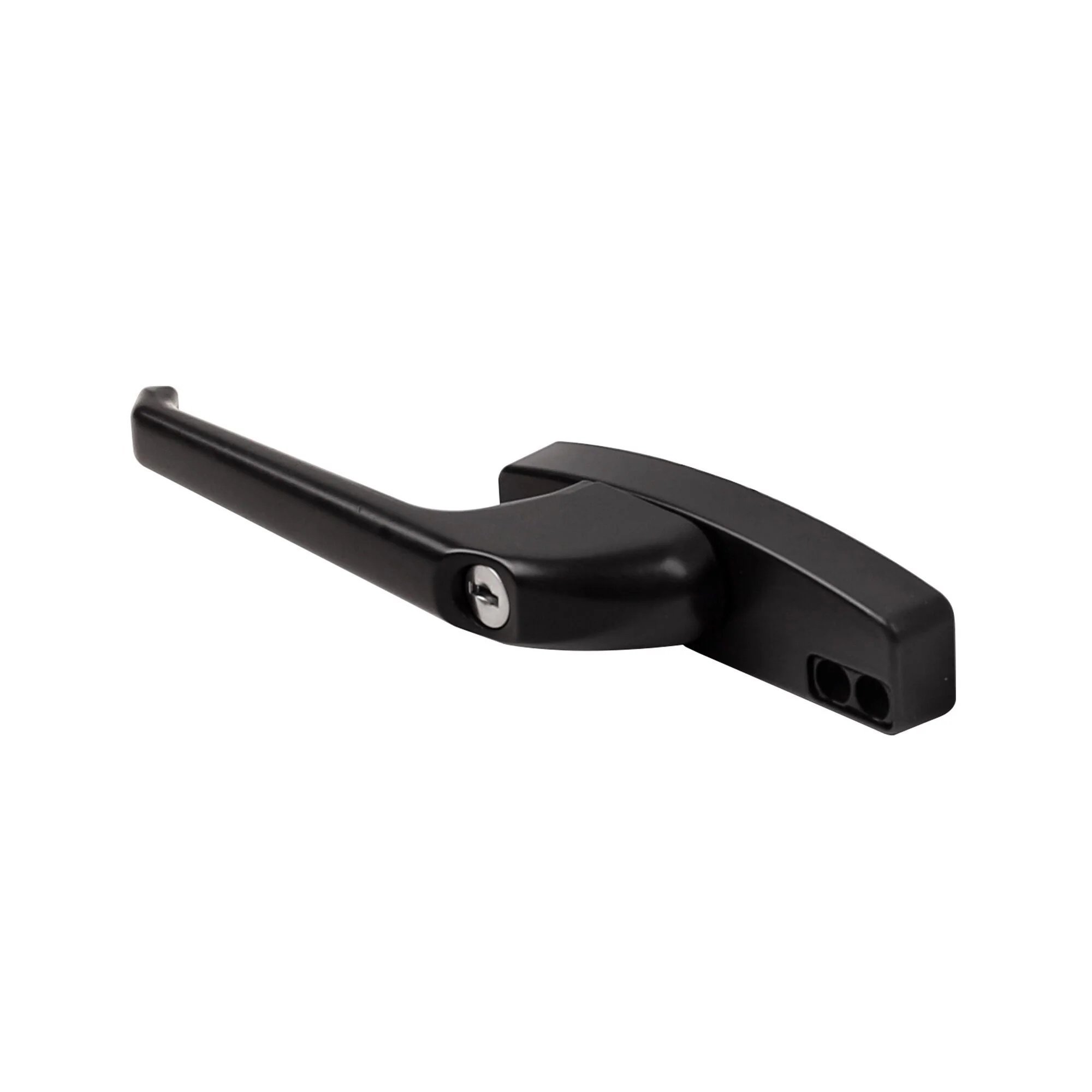

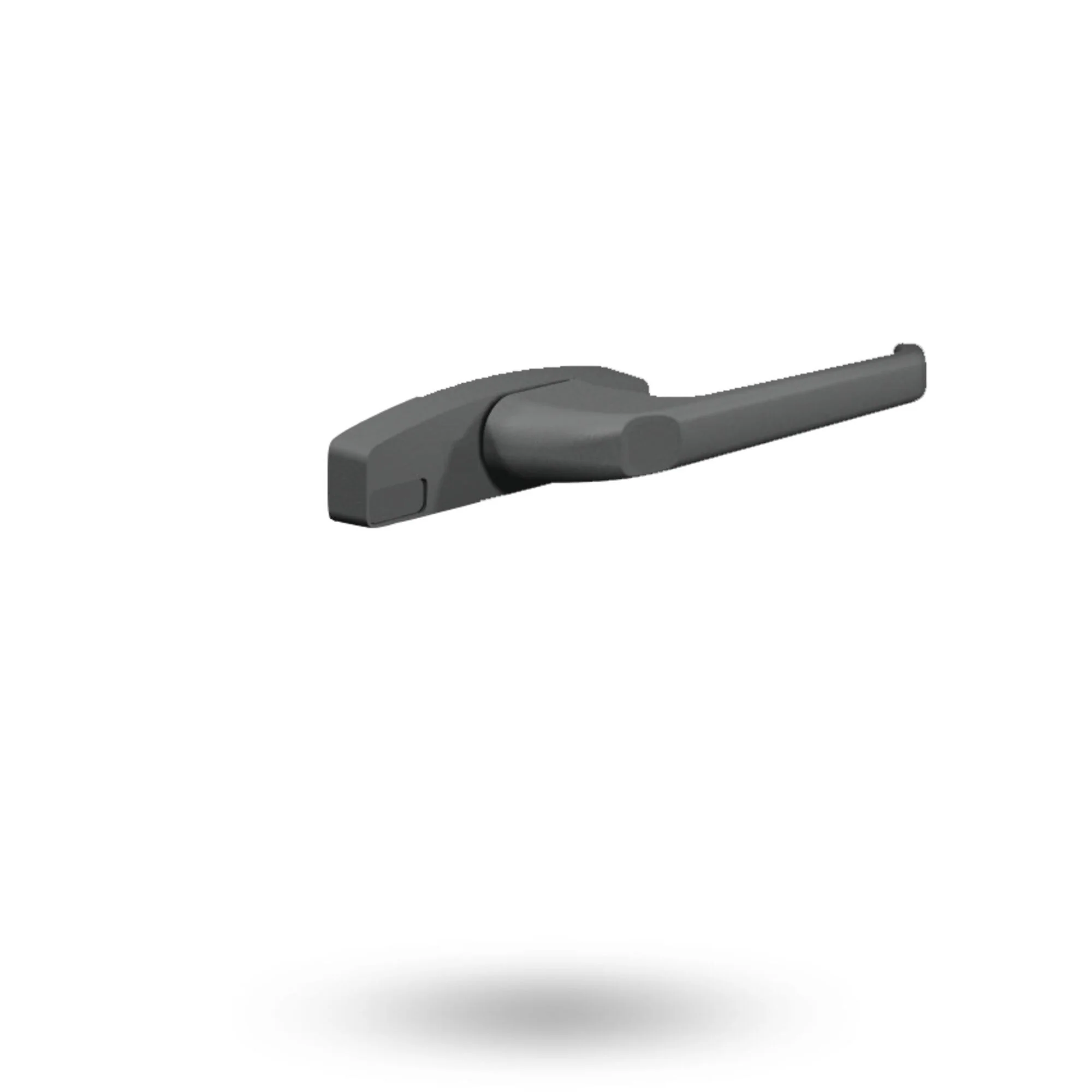

Resolute 1 Handle Lock – Various Handing & Function Options

Interlock Resolute One Concealed Multi-Point Window Locking System

The Interlock Resolute One is a concealed multi-point window locking system designed to deliver secure, visually streamlined performance where multiple locking points are required. Its versatile design allows adaptation to a wide range of window sash constructions, including structurally glazed systems and sashes with external glazing beads, making it a flexible solution for modern residential and light commercial window applications.

Features

• Concealed multi-point locking system for enhanced window security and clean aesthetics

• Adaptable design suitable for structurally glazed sashes or externally beaded window frames

• Available in locking, non-locking, and removable handle configurations

• 4-hole fixed base with screw covers to improve visual appeal

• Minimal routing required for fast and efficient installation

• Solid stainless steel lock pin provides high resistance to external negative pressure

• Locking bar manufactured from 304 grade austenitic (non-magnetic) stainless steel for durability

• Designed to work as a complete system; each window requires a handle, locking bar, and keepers

• Suitable for residential and light commercial window installations

Available Variants

• 1 Handle Lock – LH – FF/RH – VF – TP (8683(SPEC))

• 1 Handle Lock – RH – FF/LH – VF – TP (8684(SPEC))

• 1 Handle Non Locking – RH – FF/LH – VF – TP (8686(SPEC))
