RF Series Square End Plates – Various Lever & Indicator Options

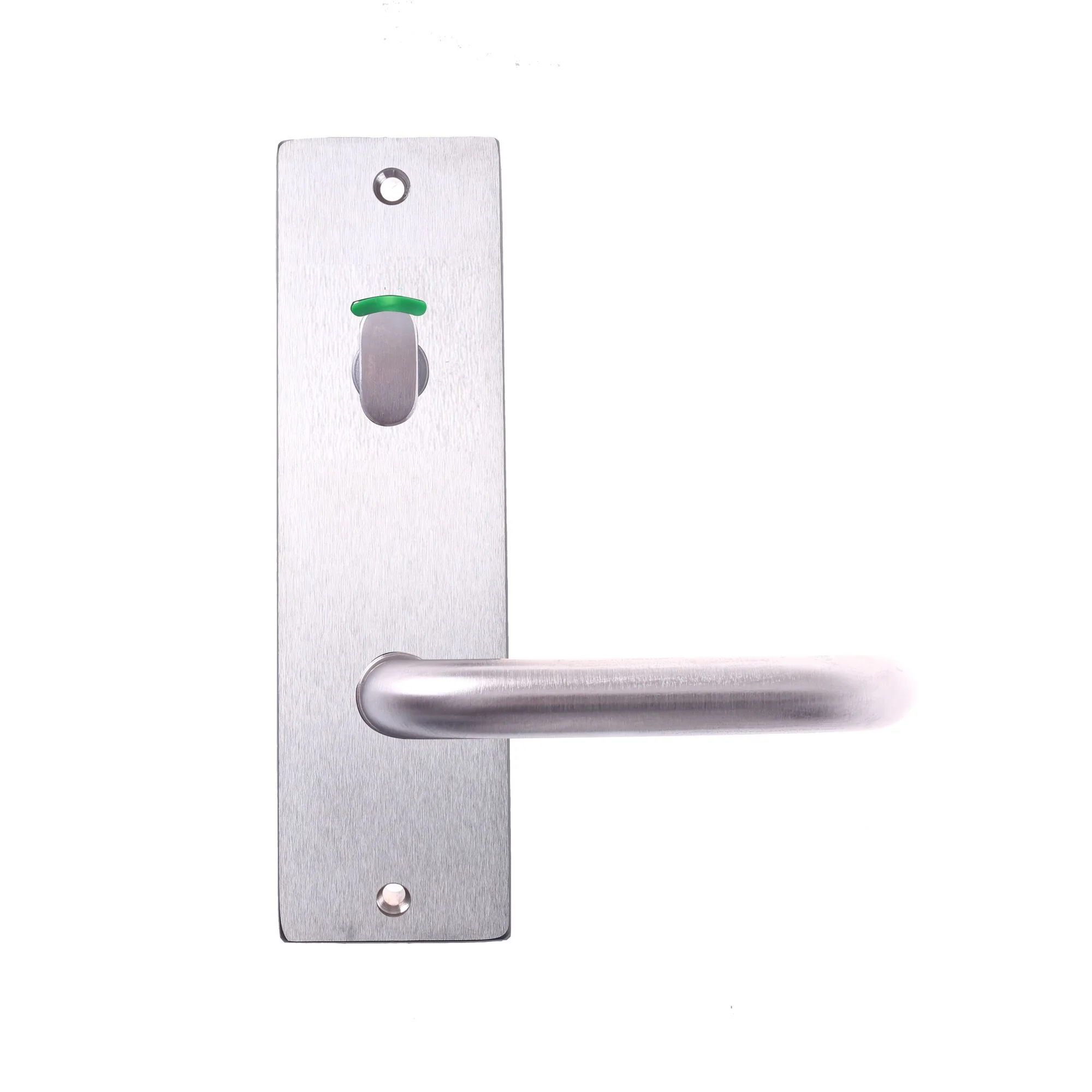

Lockwood RF916 Square End Plate Door Furniture – RF800 Series

The Lockwood RF916 Square End Plate Door Furniture forms part of the RF800 Series and is engineered for use with Lockwood mortice locks and latches in commercial and institutional settings. Featuring a square end plate design, this configuration is well suited to retrofit applications, combining clear privacy indication with reliable operation while supporting accessibility requirements.

Features

• Square end plate design ideal for retrofit installations

• Privacy function with oval turn snib and visual indicator

• Ergonomic lever design for comfortable, reliable operation

• Non-handed configuration allows levers to be reversed by removing the stop screw

• Compatible with Lockwood mortice locks and latches

• Internal plate with visible fixing for secure installation

• Back-to-back through fixing using M4 screws

• Fixing centres set at 158 mm for consistent alignment

• Suitable for commercial and institutional environments

Available Variants

• RF801 – Cylinder Hole – 70 Lever (RF801/70PC)

• RF905 – 70 Lever (RF905/70PC)

• RF801 – Cylinder Hole – 90 Lever (RF801/90SC)

• RF814 – Privacy Indicator Emergency Turn – 90 Lever (RF814/90SC)

• RF904 – Turn – 90 Lever (RF904/90SC)

• RF916 – Privacy Indicator Turn – 70 Lever (RF916/70SC)

• RF941 – Privacy Indicator Disabled Turn – 70 Lever – Synergy (RF941/70SC)

• RF941 – Privacy Indicator Disabled Turn – 90 Lever – Synergy (RF941/90SC)
